Checkbox
A question of type checkbox allows the user to select one or more options from a list of options.
{
"id": 0,
"key": "checkbox_at_least_2",
"label": "At least 2",
"description": "At least 2 options should be checked",
"required": true,
"type": "checkbox",
"answers": [
{
"id": 0,
"label": "Geen",
"nextQuestionId": 1,
"value": "geen",
"options": {
"minCheckCount": 2
}
},
{
"id": 1,
"label": "Glaszuiger",
"nextQuestionId": 1,
"value": "glaszuiger"
},
{
"id": 2,
"label": "Materiaalcontainer",
"nextQuestionId": 1,
"value": "materiaalcontainer"
},
{
"id": 3,
"label": "Pallethaak",
"nextQuestionId": 1,
"value": "pallethaak"
}
]
}
Answer Options
This chapter describes the option possibilities for an answer.
Name | Type | Description | Required | Default |
|---|---|---|---|---|
requireAll | bool | If true, the user first has to check all boxes before he can continue. | false | false |
minCheckCount | int | The minimal amount of checkboxes that are required to be checked. | false | 0 |
Examples
Optional
{
"id": 0,
"key": "checkbox_optional",
"label": "Optional",
"description": "None of the values is required",
"type": "checkbox",
"answers": [
{
"id": 0,
"label": "Geen",
"nextQuestionId": 1,
"value": "geen"
},
{
"id": 1,
"label": "Glaszuiger",
"nextQuestionId": 1,
"value": "glaszuiger"
},
{
"id": 2,
"label": "Materiaalcontainer",
"nextQuestionId": 1,
"value": "materiaalcontainer"
},
{
"id": 3,
"label": "Pallethaak",
"nextQuestionId": 2,
"value": "pallethaak"
}
]
}

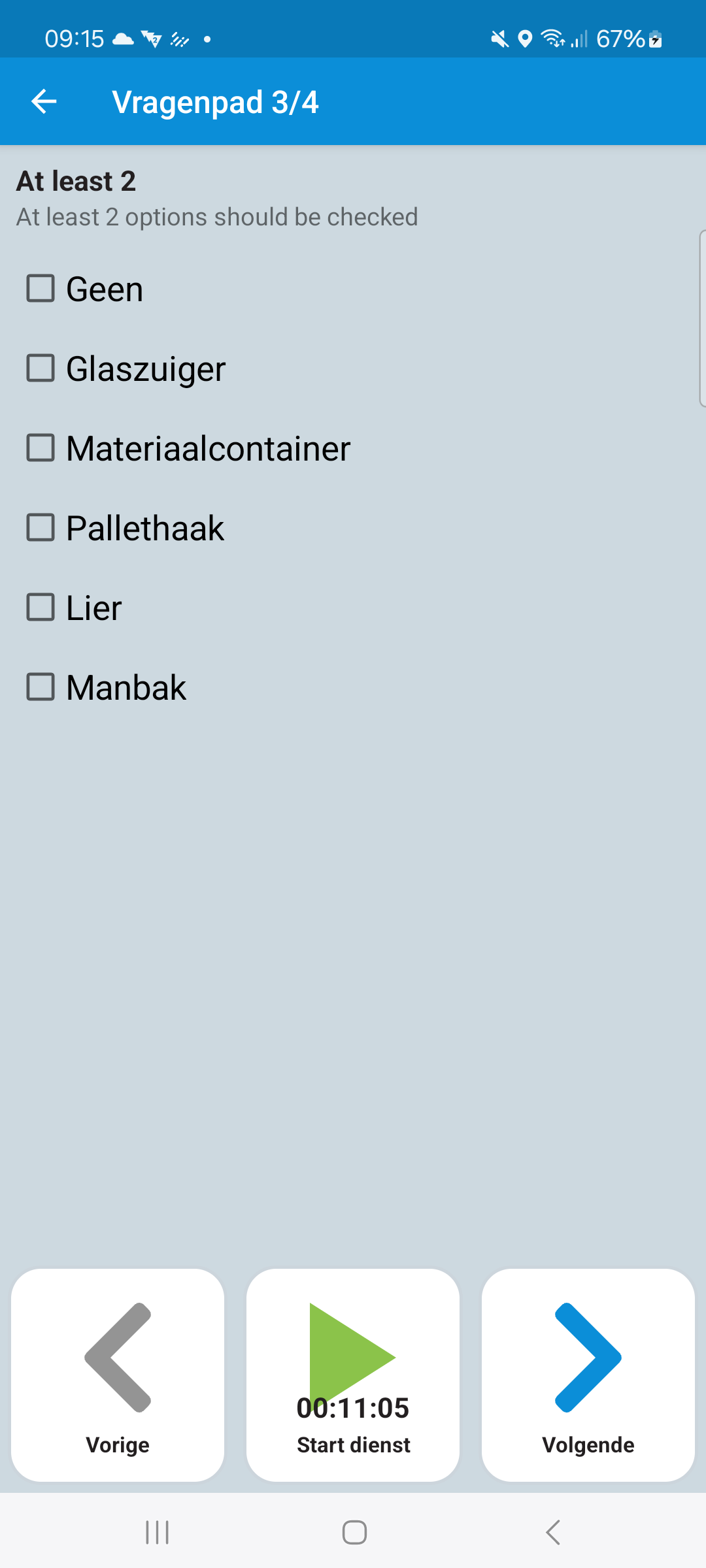

Require at least two
{
"id": 0,
"key": "checkbox_optional",
"label": "Optional",
"description": "None of the values is required",
"type": "checkbox",
"answers": [
{
"id": 0,
"label": "Geen",
"nextQuestionId": 1,
"value": "geen"
},
{
"id": 1,
"label": "Glaszuiger",
"nextQuestionId": 1,
"value": "glaszuiger"
},
{
"id": 2,
"label": "Materiaalcontainer",
"nextQuestionId": 1,
"value": "materiaalcontainer"
},
{
"id": 3,
"label": "Pallethaak",
"nextQuestionId": 2,
"value": "pallethaak"
}
]
}
Require all
{
"id": 0,
"key": "checkbox_require_all",
"label": "Require all",
"description": "All options should be checked",
"required": true,
"type": "checkbox",
"answers": [
{
"id": 0,
"label": "Geen",
"nextQuestionId": 1,
"options": {
"requireAll": true
},
"value": "geen"
},
{
"id": 1,
"label": "Glaszuiger",
"nextQuestionId": 1,
"value": "glaszuiger"
},
{
"id": 2,
"label": "Materiaalcontainer",
"nextQuestionId": 1,
"value": "materiaalcontainer"
},
{
"id": 3,
"label": "Pallethaak",
"nextQuestionId": 1,
"value": "pallethaak"
}
]
}
